Also fits the following:

• 1971-1983 Dodge Charger
• 1971-1976 Dodge Coronet
• 1972-1974 Dodge Challenger
• 1972-1976 Dodge Dart
• 1974-1993 Dodge Ramcharger
• 1971-1974 Plymouth Satellite
• 1972-1974 Plymouth Barracuda
• 1972-1976 Plymouth Duster
• 1972-1976 Plymouth Valiant
• 1976-1980 Plymouth Volare
• 1978-1983 Plymouth Horizon

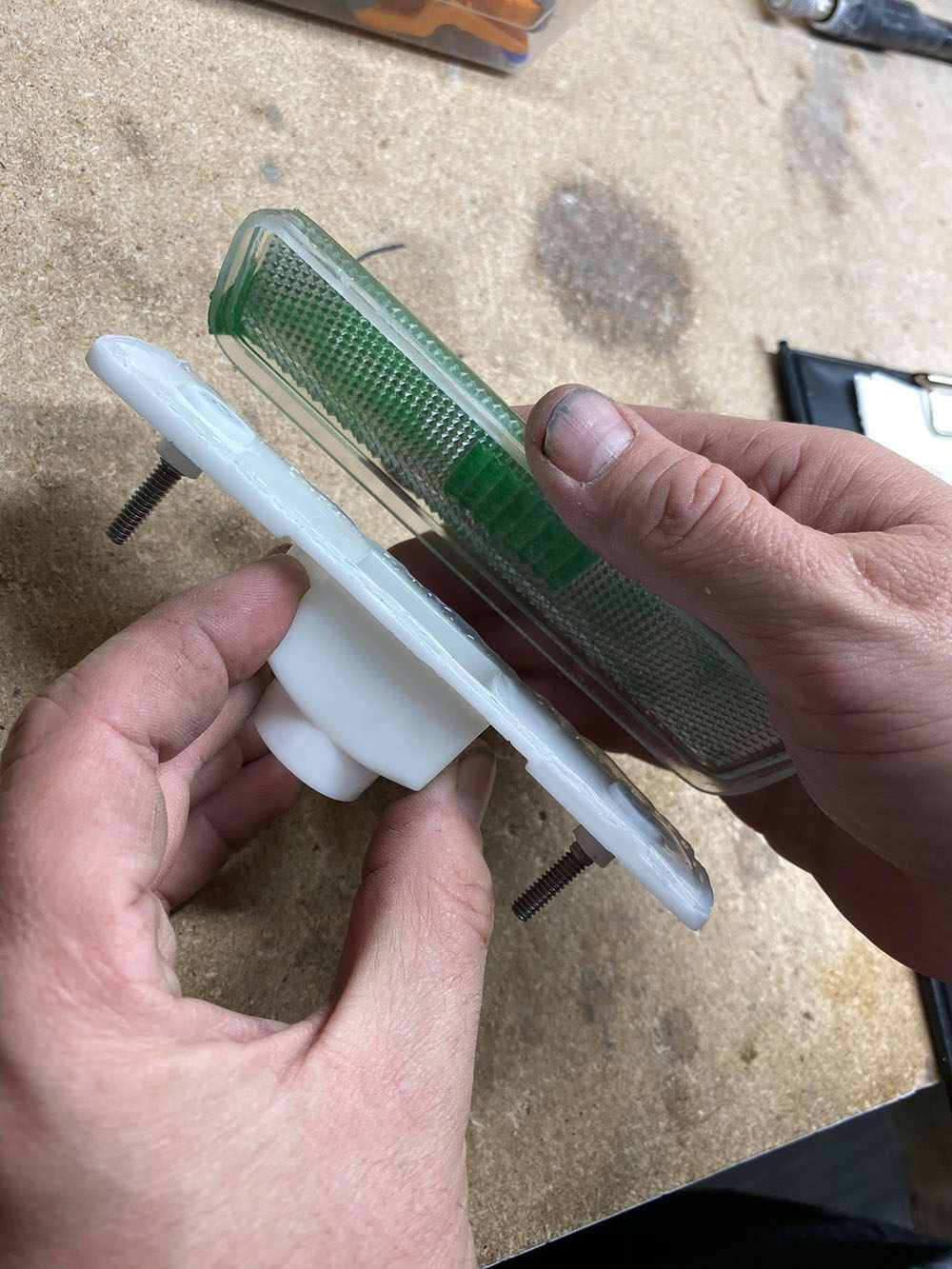

1. Test fit lenses and housings, make any adjustments if necessary. Make sure the bolt heads are sanded down enough so they don't hit the reflectors.

2. Cover the lenses with painters tape to protect them. If your clamps don't have a smooth surface, put 2-3 layers of tape

3. Sand both matting surfaces, the perimeter on the housings. The lenses will need to be scuffed using a small file

4. Apply a 2 part clear epoxy, ideally UV resistant for clear lenses. Apply the epoxy to the whole perimeter.

5. Press the lens to the housing, move lens up/down and left/right to make a good connection with the epoxy. Then center the lens in the opening. Add a few clamps. Test for any air leaks. The easiest way to test for this at home is to suck on the hole where the bulb goes. If you are sucking air, then water can also get in. Locate the air leak and add more clamps on that side until the air leak stops. You can also move the lens a bit until you get a better seal. In our example, the top part had a small air leak, so we added more clamps.

6. Clamp
